Product Description:
¡òPerformance Range:
Max. Flow: 630m 3 / h
Max. Head: 44m
¡òApplication condiiton:
Maximum liquid temperature +40¡æ
pH level from 4-10
Maximum liquid density 1.2¡Á10 3 kg/m 3
Voltage fluctuation range ¡À 10%
Immersion depth from 0.5m-5m
¡òCertificate:CE
¡òApplication fields:
WQB(Single stage with high power) series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps, etc. and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipment for agricultural irrigation and drainage, pool silt cleaning and site construction, but do not apply to the location with explosion-proof requirements.
¡òFeatures:
Large power submersible sewage pump, the standard flange outlet.
Double channel impeller, good flowing capacity, excellent hydraulic performance.
Stainless steel shaft extension and carbide double sides mechanical sealing.
¡òOptional Available on Request:
Other voltage or frequency is 60Hz

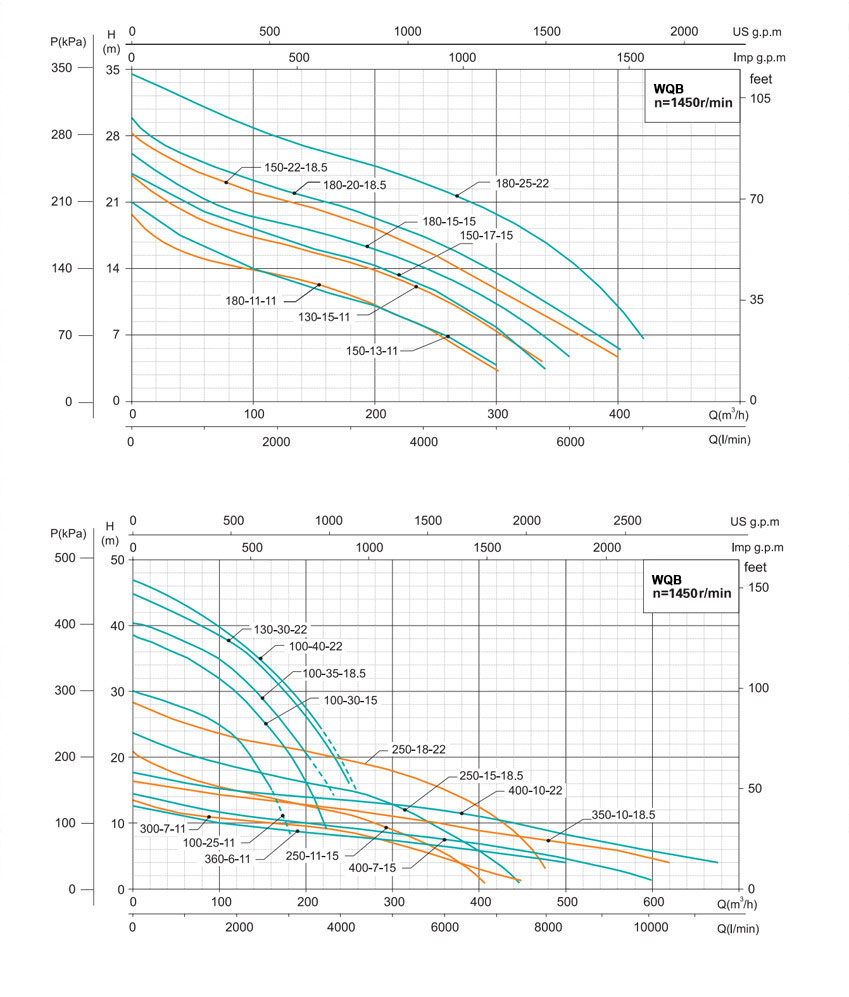

¡òPerformance Curve:
